PLATE MAGNATE
Plate Magnate are used in chutes and suspended over conveyor products to remove ferrous contaminants. Installed on the chute’s bottom, they capture contaminants as the product moves through, with the magnetic field strongest at the surface and weakening with distance.
- Heavy-Duty & ISO-Certified Quality
- Custom-Engineered for Your Plant
- 30+ Years of Expertise & Full Support
Product Overview

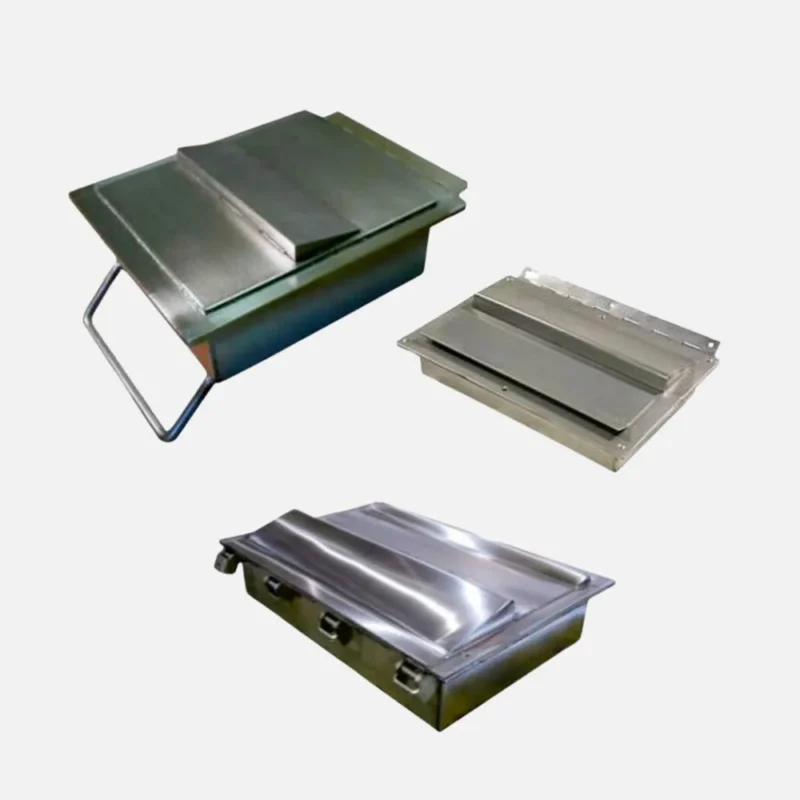

High-Performance Industrial Plate Magnets
Installing a high-performance industrial plate magnet is a simple yet incredibly effective way to protect your processing machinery from dangerous tramp iron and ferrous contamination. At IP Magnate, our heavy-duty magnetic plates are expertly engineered for easy installation in angled chutes, vertical spouts, ducts, and even suspended over conveyor belts. Whether you are processing bulk agricultural grains, plastic resins, or abrasive minerals, our plate magnets provide a deep-reaching, continuous magnetic field that securely extracts metal debris without restricting your product flow.
industrial plate magnet are designed in various Size & strengths to meet with specific operation & plant Conditions Magnatic plates are widely used for removing Tramp iron bolts nuts bits of Wire ,Nails and other Casual containmination from free flowing naterials to protect against occasional damage to the plant caused by bits of iron. Plate can ideally be used to remove tramp iron from the moving material carried in chutes ducts spouts or on conveyor belt screens and feed trays Wheather the material is plastic orfree papper pulp food or fertilizer oil seeds or gains the result is sure protection of processing machinery and iron free final products.
Plates are designed for used in chutes and suspension over conveyed product installed on the bottom Side of a chute a plate Magnat will provide maximum protection as product travels through the powerful magnetic circuit the magnate field protects from the face of the plate reaching into the product stream and pulling the ferrous contaminants to the magnate field on a Plate is strongest at the surface and grts weaker the further you move away.
How Our Plate Magnetic Separator Works
The operation of our industrial plate magnet is completely passive and requires zero electricity. The unit consists of a robust, flat magnetic circuit permanently enclosed within a rugged stainless steel housing. It is typically installed directly into the bottom floor of an angled gravity chute or suspended above a material stream.
As the bulk material flows over or under the magnetic plate, the powerful, deep-penetrating magnetic field reaches into the product burden. Any stray ferrous metals such as nuts, bolts, wire, or rust flakes—are instantly violently attracted to the plate. The metal is pulled tight against the stainless steel face and held securely in place, preventing it from being washed back into the clean product stream. To clean the magnet, the operator simply opens the hinged installation door and wipes the accumulated metal off the face.
Key Features & Technical Advantages
We construct our magnetic plates to deliver maximum holding force and seamless integration into confined processing spaces:
- Deep Reaching Magnetic Field: Available in both premium Ceramic (Strontium Ferrite) for deep-reach applications and ultra-powerful Rare Earth (Neodymium) for capturing microscopic, weakly magnetic dust.
- Flush Face & Exposed Pole Designs: Designed with a standard smooth “flush face” for general use, or an “exposed pole” design featuring a raised step that physically blocks captured metal from being washed away by high-speed material.
- Easy Installation: Comes equipped with pre-drilled heavy-duty hinges, industrial latches, and mounting holes for quick integration into existing spouting and ductwork.
- Rugged Stainless Steel Build: Fully welded and fabricated from high-grade 304 or 316L stainless steel, ensuring complete resistance to abrasion, moisture, and harsh chemicals.
- Maintenance-Free Operation: With no internal moving parts or electrical requirements, our plate magnets require zero maintenance beyond routine manual cleaning.
Wide Industrial Applications
Because of their versatile, low-profile design and powerful extraction capabilities, our plate magnets are widely utilized in:
- Food & Milling: Removing ferrous debris from gravity chutes conveying flour, sugar, grain, and spices.
- Plastics & Injection Molding: Protecting expensive extruders from metal contaminants in free-flowing plastic pellets and regrind.
- Wood & Recycling: Extracting nails, brackets, and wire from wood chips, sawdust, and recycled materials.
- Chemical & Minerals: Safely purifying dry bulk chemicals, fertilizers, and abrasive mineral powders.
Request a Custom Quote
Ensure absolute product purity and protect your critical downstream equipment. Contact IP Magnate’s technical team today with your chute dimensions, material flow rate, and mounting requirements, and let us custom-manufacture the perfect plate magnet for your facility.
