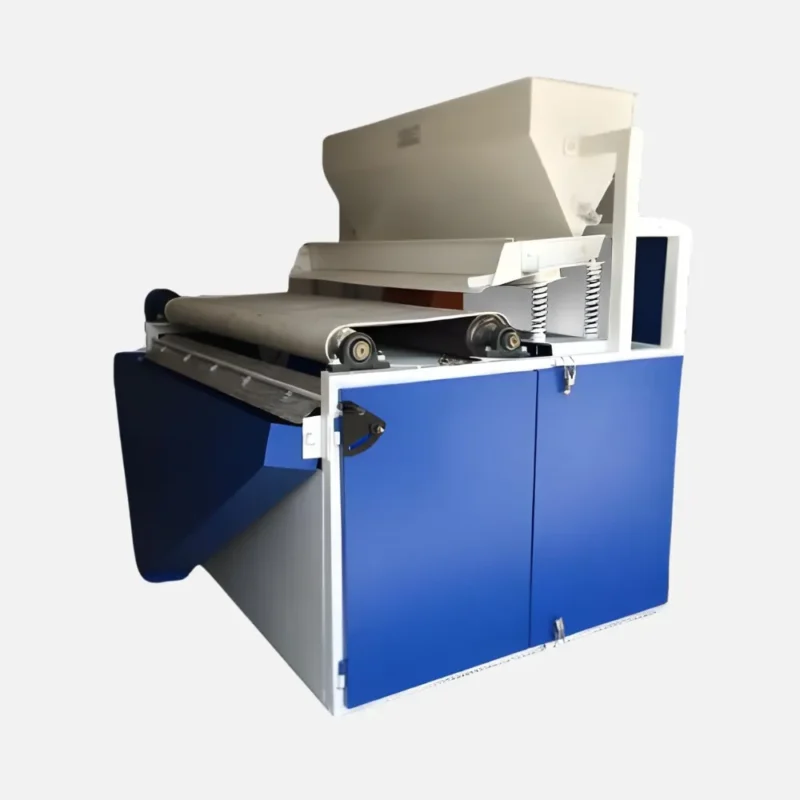

MAGNETIC ROLL SEPARATOR
Magnetic Roll Separator incorporates high energy rare earth neodymium permanent magnetic roll assembly, which is manufactured and assembled under strict quality control and specification to generate unsurpassed magnetic field gradients. Under this high-intensity magnetic field, weakly magnetic contamination can be easily removed easily and efficiently.
- Heavy-Duty & ISO-Certified Quality
- Custom-Engineered for Your Plant
- 30+ Years of Expertise & Full Support
Product Overview
High-Intensity Magnetic Roll Separators
Investing in a high-performance magnetic roll separator is the ultimate solution when your industrial process requires the extraction of very fine, weakly magnetic impurities from dry bulk materials. At IP Magnate, our high-gradient Rare Earth Roll Separators are expertly engineered to deliver unmatched purification levels for non-magnetic materials. Whether you are upgrading the brightness of silica sand, purifying ceramic glazes, or ensuring metal-free food products, our equipment generates intense magnetic fields to capture microscopic iron oxides and paramagnetic contaminants that standard magnetic separators simply cannot catch.
High-intensity Magnetic roll separator incorporates high energy rare earth neodymium permanent magnetic roll assembly, which is manufactured and assembled under strict quality control and specification to generate unsurpassed magnetic field gradients. Under this high-intensity magnetic field, weakly magnetic contamination can be easily removed easily and efficiently.
The High-Intensity Roller Type Magnetic Separator is equipped with a high-energy rare earth neodymium permanent magnetic roll assembly, meticulously manufactured and assembled under stringent quality control standards. This advanced separator generates exceptional magnetic field gradients, ensuring superior performance in contaminant removal.
Under the influence of this powerful magnetic field, even weakly magnetic contaminants are efficiently and effectively separated from the material. The design of the magnetic roll assembly ensures optimal exposure to the magnetic field, enhancing the separation process and delivering outstanding results in removing unwanted magnetic particles. Ideal for applications requiring precise and high-efficiency separation, this magnetic separator provides unparalleled performance and reliability.
How Our Magnetic Roll Separator Works
The operation of our magnetic roll separator relies on extreme magnetic forces and precise material flow. The machine features an ultra-strong magnetic roll (made of Rare Earth Neodymium magnets) and an idle tensioning roll, with a highly durable, thin Kevlar belt running continuously between them.
The dry raw material is fed onto the belt via a vibrating feeder, ensuring a very thin and uniform monolayer of material. As the material travels over the high-intensity magnetic roll, the non-magnetic particles are thrown off naturally into a clean discharge chute due to centrifugal force. However, the fine magnetic and paramagnetic impurities are strongly attracted to the roll. They cling to the thin belt for a fraction of a second longer and are carried underneath the roll, where they are pulled out of the magnetic field and safely dropped into a separate reject chute.
Key Features & Technical Advantages
We construct our roll separators using the highest grade magnetic materials to guarantee extreme separation efficiency and long-lasting performance:
- Ultra-High Magnetic Field: Engineered with premium NdFeB (Rare Earth) magnet discs to generate peak magnetic field strengths (up to 10,000 – 15,000 Gauss) on the roll surface.
- Multi-Stage Configurations: Available in single, double, triple, or custom multi-roll configurations (placed one below the other) to maximize the purity of the final product in a single pass.
- High-Performance Kevlar Belt: Equipped with ultra-thin, tear-resistant Kevlar belts that minimize the distance between the magnetic field and the material, ensuring maximum attractive pull.
- Variable Speed Control (VFD): Features an advanced control panel allowing precise adjustments to the belt speed and vibratory feeder, perfectly matching the flow rate to your specific material.
- Adjustable Splitter Plate: The discharge zone includes a highly sensitive, adjustable splitter plate to sharply divide the pure product stream from the magnetic rejects.
Wide Industrial Applications
Because of its ability to remove micro-fine paramagnetic contaminants, our magnetic roll separation equipment is a vital asset in:
- Quartz & Silica Sand: Removing iron oxides and biotite to achieve high-brightness sand for glassmaking and engineered stone.
- Ceramics & Refractory: Purifying ceramic raw materials, feldspar, and glazes to prevent black spots and discoloration.
- Food & Spices: Ensuring strict metal-free purity in dry spices, tea, coffee, and dehydrated food powders.
- Plastics & Recycling: Separating fine ferrous dust from recycled plastic flakes and resin pellets.
Request a Custom Quote
Achieve the highest possible purity levels for your dry bulk materials. Contact IP Magnate’s technical team today with your material specifications, target purity, and capacity requirements, and let us design the perfect high-gradient magnetic separation solution for your facility.
